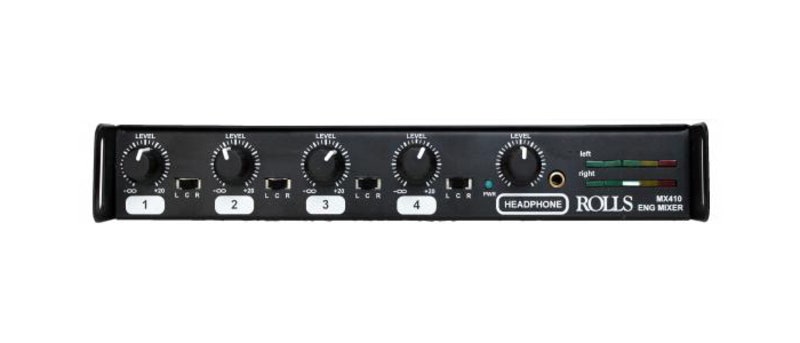

Rolls MX410 Field mixer

The MX410 is a four channel, microphone mixer with balanced XLR inputs and outputs. The unit is ideal for the broadcast and video markets. It has the same features of other ENG / portable mixers without the extremely high price. Applications include: * DV Field Production. * Electronic News Gathering. * Location Recording (Dialogue and Music). * Digital Recording. * Broadcast Remotes. * Desktop Mixing for Video Post Production.



• Input Impedance: 600 Ohm bal. /10K Ohm Aux.
• Output Attn. Switch: 0/-30 dB
• Self Noise: -65 dB maximum, -90 dB typical
• Max Gain: +55 db
• S/N Ratio: 115 dB
• Frequency Response: 20 Hz - 20 kHz | +0, -3 dB
• Max Input: -20 dBV
• Current Draw: 30 mA with no Phantom Power or Signal.
• Phantom Power: +18 VDC
• Connectors: 4: Female XLR, 2: Male XLR, 3: (3.5mm), 1 Center Negative power jack.
• Power: 12-15VDC / < 300-500 mA
• Size: 9" W x 6.75" D x 1.5" H
• Weight: 2.45 lbs

• Four balanced XLR Inputs.
• Two transformer-balanced XLR Outputs
• Switchable Output Level ( Line level, or mic)
• Switchable Phantom Power for each input.
• Level controls for each channel.
• 3.5mm Headphone Output and Level control.
• Rolls PS27s external power supply included.
• Powered by two 9 volt batteries or the included power supply
