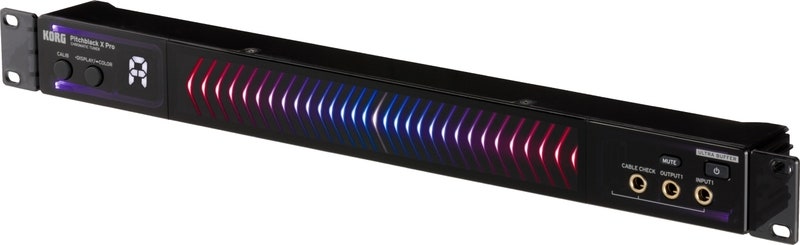

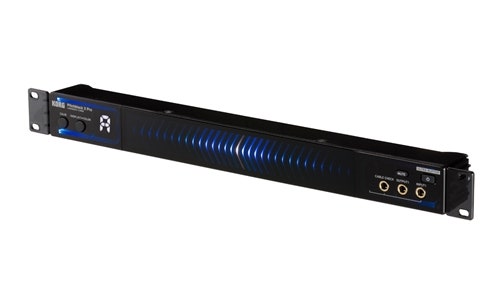

KORG PB-X-PRO Rack Tuner

KORG Pitchblack X PRO Rack Tuner

• Allows switching between true bypass and the newly-developed ULTRA BUFFER
• Meter LED also offers bright mode settings for high visibility
• Ultra-high tuning accuracy down to ±0.1 cents
• Four meter display modes
• Built-in “just-right tuning” display
• Featuring the newly-developed ULTRA BUFFER


ULTRA BUFFER!

The  Pitchblack X Pro not only features a true bypass for outputting the sound exactly as it was input, but now includes a built-in ULTRA BUFFER.
Why is this important?
The majority of electric guitars use passive pickups with a high impedance output. When you are using a cable there is a loss of tone, usually high frequencies, after about 6 m (around 18 feet) and this problem gets worse the longer your cable. A buffer boosts the signal over long cables to avoid loss of tone, keeping it clean and clear - even when your pedal is off. The ULTRA BUFFER enhances the sound quality in bypass mode, so that you can still maintain audio quality even when using a long cable to connect to the tuner, or when inserting the tuner into a complex effects board.

Designed for a wide range of setups

This tuner comes with easily detachable rack-mounting adapters. Aside from installing this tuner into a rack, you can attach the rack-mounting adapters onto the bottom of the unit, and use them as a stand for placing the unit on the floor. Further, output jacks are available on both the rear and front panel, which makes it easier to integrate the tuner into your effects board.

Multicolored LEDs feature excellent visibility

With this tuner, you have a choice of multicolored LEDs for outstanding visibility. Available colors include blue to red gradation, green to red gradation, and single-colored gradation for cyan, green and blue for a total of five color types. This lets you select the colors and color combinations that suit your tastes, to match the studio or  stage lighting and color mood..

Ultra-high tuning accuracy down to ±0.1 cents

The Pitchblack XS offers highly precise and accurate tuning within a precision of ±0.1 cents when in Strobe mode, making it ideal for situations where the tuning must be absolutely right whether performing or recording.

Four meter display modes

Select from four types of meter display to match your requirements. Aside from the typical “Regular” mode, you can use “Strobe” and “Half Strobe” mode to indicate changes in pitch by the direction and speed that the meter is flowing in to distinguish even the finest differences in pitch; and you can use “Mirror” mode to see two LEDs on the left and right crossing together towards the center as you tune your instrument.

Features a built-in “just-right tuning” display

The Pitchblack X features a new “just-right tuning” display function, which makes the triangular LEDs on both sides blink when the tuning is correct, helping tuning be a stress-free experience.

An extremely useful cable checker function.

By connecting a standard cable into INPUT 1 and CABLE CHECK jacks, you can use KORG’s own special “cable checker” function to see whether the cable is shorted out. This feature helps to confirm any potential problems and help prevent cable troubles onstage and in the studio.

Specifications

• Scale: 12 note equal temperament
• Detection Range: E0 (20.60Hz)~C8(4,186Hz)
• Calibration Range: A4=436〜445Hz（1Hz steps）
• Detection Accuracy: +/- 0.1 cent (display mode: Strobe)
• Input Impedance: 1 M-ohm (tuner on)
• Display Modes: Regular, Strobe, Half-strobe, Focus
• LED color patterns: Blue and red gradation, green and red gradation, cyan, green, blue
• Connectors: Front Side…INPUT 1 jack (1/4″/6.3 mm monaural phone jack), OUTPUT 1 jack (1/4″/6.3 mm monaural phone jack), CABLE CHECK jack (1/4″/6.3 mm monaural phone jack) Rear Side…INPUT 2 jack (1/4″/6.3 mm monaural phone jack), OUTPUT 2 jack (1/4″/6.3 mm monaural phone jack), DC 9V IN jack
• Power Supply: AC adaptor (9V)
• Power Consumption: Maximum mA TBA
• Dimensions (W x D x H): Tuner Only…430 x 50 x 44 mm（including protrusions）
• Dimensions, When used with the rackmount adapters…482（W）× 50（D） × 44（H）mm（including protrusions）
• Weight: 379 g
• Included Items: Notices, AC adapter, Screw x 4, Washer x 4, Rack mounting adapter x 2
